XPS ODE

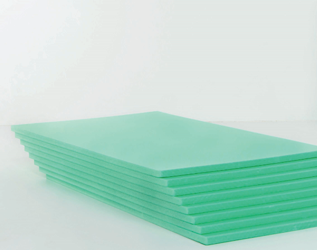

Polystyrene Insulation Boards XPS

Pressure-resistant thermal insulation board (XPS) made of extruded polystyrene foam with shiplap. The XPS insulation board provides energy savings, thermal insulation, from the basement to the roof.Just where extreme pressure and moisture stress, particularly high demands on the insulation materials, the extruded polystyrene (Short form XPS, named after extruded polystyrene foam) is the ideal solution for numerous applications. Such as perimeter and base insulation, flat roof insulation, insulation under the soil plate, in wet areas, etc. XPS AustrothermXPS ODE

Color: green ODE, pink Austrotherm
Thickness: 3cm, 5cm, 10cm Surface: 125cm x 50cm
Available surface: 0,75m²/board
Flameability: B1 (hard burning)
Compressive stress (at 10% compression): 300kPa

Apparent density XPS: 30 – 45 kg/m³
Thermal conductivity: λD = 0,033 – 0,037 W/(mK)

Application: Basement wall outside, above and below ground-plate, for inverted roof, terrace- and parking-roof, in a humid area, Plus Duo-roof, Core insulation.

Floor Skirting board Basement floor Basement wall

Advantages: largely water resistant, best ecological property (cell content air), excellent thermal insulation, suitable for promoted residential building.

GranoporTop 1.5K

Baumit GranoporTop 1.5K

Baumit GranoporTop K 1,5 mm is ready to use pasty organically bound thin-layer cover coat as floating and set with scraped or corrugated structure, white or pigmented, for outside and inside applications, can be processed manually and by machine.

Bucket 30 kg, 1 pal = 16 buckets = 480 kg
Bucket 25 kg, 1 pal = 16 buckets = 400 kg

Consumption:
app. 2.5 kg/m2
app. 12 m2/30 kg

Properties: Hydrophobic, weather – resistant, water vapour permeable, washable, outstanding colouring properties, high mechanical stress and load resistance, easy to work with.

Application: Protection and design of facades and internal wall surfaces on mineral plasters and stoppers, on concrete, for rework on organically bound stoppers and plasters, as final coat of the Baumit heat insulation composite system EPS, as well as on renovation plasters.

Advantages: Décor render finish for exterior use. Diffusible and very resistant to water. Washable thin-layer render with synthetic resin bonding agent. With its excellent resistance properties.

UniPrimer

Baumit UniPrimer

Primer Ready to use, organic based primer for hand application. A system component fromthe Baumit External Wall Insulation System EPS-F.All-purpose primer to regulate suctionand improve adhesion for Baumit GranoporTop and MosaikTop.

Bucket = 25 kg, 1 pal = 16 buckets = 400 kg.
Consumption:
app. 0.20 – 0.25 kg/m2 on putties
app. 0.40 kg/m2 on plaster bases

Application: Universal priming coat for interiors and exteriors to prepare background surfaces before applying Baumit NanoporTop, Baumit SilikatTop, Baumit SilikonTop, Baumit GranoporTop, Baumit StyleTop, Baumit EdelPutz, and Baumit  MosaikTop.

Advantages: Improves adhesion and equalizes background suction. Helps to maintain colour uniformityof Baumit topcoats and improves the hydrophobic qualities of the background.

FiberGlass Mesh

Baumit FiberGlass Mesh – Star Tex

Alkaline resistant, glass fibre textile mesh for use with Baumit external wall insulation system EPS-F. Tested according ETAG 004.

Mesh size: approx. 4 x 4 mm
Surface/weight ratio: ≥ 145 g/m²

1 roll = 50 m2
1 pal = 30 roll = 1.500 m2

Properties: Optimised load failure and expansion.

Application: Provides reinforcement for Baumit contact mortars. Strengthens basecoats for Baumit External Wall Insulation systems, render carrier boards and general basecoat renders and plasters.

Advantages: Grid provides it’s properties mainly carrying tensile stresses in the plaster, posed by sudden temperature changes climate effects. An important role in reinforcing layer has a Glass fiber mesh, which functions as a reinforcement all insulation systems.

Plug PTH

Baumit Plugs PTH

Baumit Plugs PTH is designed for mechanical fixing of facade insulation boards on the wall. Suitable for the base of concrete, solid brick, hollow brick, light weight concrete. The minimum embedment depth 3.5 cm. Lengths: 13.5, 15.5, 17.5 cm.

Application: Additional plugging of the Baumit EPS-F Facade -Insulation Board is not required for system surface weights of up to 30 kg/m2. On concrete and plastered base surfaces, at least 4 plugs/m2 are required across the surface, and at least 8 plugs/m2 around the edges.

Advantages: Is used for the transmission of wind sucking loads.

Austrotherm polystyrene EPS-F70

Polystyrene Insulation Boards EPS – F70

Thermal insulating boards made from blocks of expanded polystyrene beads. System component of the Baumit External Wall Insulation System EPS.

Color: White
Surface: 0.5m x 1m, 1m x 1m, 1m x 2m
Thickness: 2cm to 30cm
Flameability: B1 (hard burning)

Apparent density EPS-F70: 15 – 18 kg/m³
Thermal conductivity: λ = 0.040 W/(mK) = 0.29 [BTU in /ft2.hr.°F]

Properties: Highly thermally insulating, dimensionally exact, form retentive and resistant to ageing, non-shrinking, hardly flammable. Free of CFCs, HCFCs and HFCs.

Application: As an exterior wall heat insulation composite system for the facade of newand existing buildings.

Facade

Advantages: Good thermal insulation properties,low water absorption and dimensional andshape stability.

Picture StarContact White

Baumit StarContact White

Adhesive and reinforcement white mortar for bonding of Facade polystyrene plates EPS and XPS as well as the implementation of reinforcing layer with the insertion of Baumit FibreglassMesh. It is also suitable for trowelling plaster and concrete surfaces.

Bag = 25 kg 54 bags/pallet = 1.350 kg
Water demand app.: 6.5 l/bag
Consumption: app. 3.5 kg/m2 (bonding) app. 4.0 kg/m2 (filling)

Product: Factory prepared mineral based, dry powder contact mortar. Suitable for manual and machine application. A system component for the Baumit External Wall Insulation Systems EPS and XPS. Tested according to ETAG 004.

Properties: High bonding strength, water resistant and good workability.

Application: Multi-purpose contact mortar: As an adhesive for bonding Baumit facade and perimeter insulation boards. As a thin layer basecoat mortar (with reinforcing mesh) onto Baumit insulation boards and selected render carrier boards. Also suitable for preparing surfacesof coarse render basecoats to receive fine grained (<2mm) Baumit decorative topcoats and as a thin bonding coat (keyed) over concrete surfaces to receive further coatings.

Advantages: High quality glue, which forms the heart of the system and can handle more demanding applications. Particularly simple application system, safety, long life.
